Applicable to: oil fume purifier, dust, particle electrostatic dust removal, UV lamp tube, laser generator, ozone generator, etc.

700Pro high-voltage power supply is developed, designed and produced in accordance with European CE and American UL standards, and has been exported to Leadbetter, Dow and other companies in the United States. Many European companies such as Pushit comply with EU standards .

Product feature display

Voltage adjustment knob and voltage value output scale, power adjustment and function buttons

Various LED indicators of the main power switch

High-voltage output line 80*80 high-power dual cooling fan

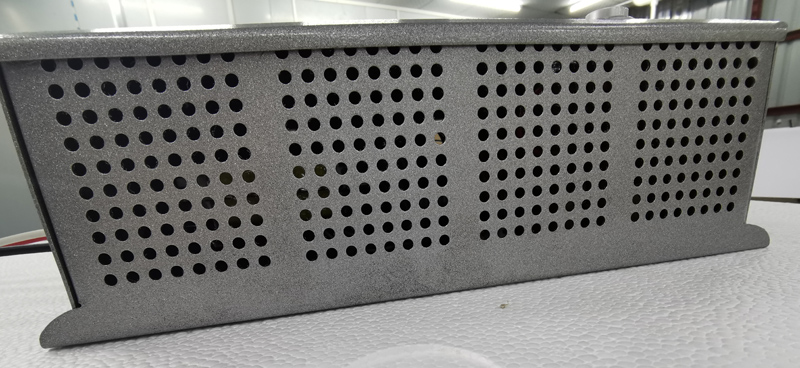

320 convection cooling holes, external indicator light, insurance, 220V input aviation plug

External work indicator light 220V power input line

Product advantages

Intelligent high-voltage power supply in the true sense< br /> 1. In the case of partial load (electrostatic plate) short circuit (fire) and overload (cleaning), all high-voltage power supplies currently on the market are forcibly stopped working, which will cause many users to fail to make good electrostatic plates work normally. This intelligent high-voltage power supply solves the above problems. When short-circuit (fire) and overload (cleaning), various sensors will feedback signals to the CPU, and the CPU will renew a suitable voltage for the load (electrostatic plate) according to various data analysis and algorithms Let it work properly.

2. The true sense of intelligent controllable and adjustable output power, this power supply has a power adjustment button to match the output according to the power required by the customer. At present, all power supplies on the market use voltage regulation as power regulation, which is not true power regulation.

3. This high-voltage power supply is equipped with a power-on button, various function buttons, and various working status indicators. The 220V input terminal is docked with an aviation plug. It is also equipped with a 1 meter high-power high-voltage insulated wire, which is waterproof and waterproof. Static electricity, lightning protection, etc., without any exposed internal circuits of the host. The external work indicator is a 4PIN aviation plug, equipped with a 1 meter data cable and a 10mm LED work indicator.

4. Large knob voltage adjustment key, the user adjusts to the output voltage he needs according to the voltage scale, this function is solved, the user cannot control the short circuit between the high voltage electrodes (ignition) when the user does not know the output voltage value The problem of no-load (open circuit) caused by too much distance from the electrode plate, which makes the electrostatic plate unable to work normally.

5. When the output voltage is far lower than the starting load state (such as the electrostatic field voltage is not large enough to produce the effect of removing smoke and dust, the ozone generator voltage is not large enough to ionize oxygen to produce ozone, etc.) the low voltage indicator will light up to remind The user's current voltage is not large enough, and the voltage needs to be increased, which really brings users the experience of smart high-voltage power supply.

6. This high-voltage power supply solves the common problem of high-voltage power supplies on the market and cannot work continuously. At present, the high-voltage power supply on the market stops working for 2 seconds for 4 seconds and cannot work continuously. This will cause the electrostatic field to fail to work continuously. This high-voltage power supply solves the common problem in the market that cannot work continuously, can work continuously all the time, and maintain a stable and continuous high-voltage output.

7. This high-voltage power supply is developed, designed and produced in accordance with European CE and American UL standards, and has been exported to many companies such as Leadbetter, Dow, and many companies in Europe, such as Pushet, and meets EU standards.

8. Stable performance and a wide range of uses. It can be used in oil fume purifiers, ozone generators, ion generators, laser generators, UV lamp sets, electrostatic precipitators, X-ray tube exciters and other fields.

Product parameters

Product name: Intelligent high voltage power supply Product model: 700Pro
Power: 700W Input voltage: AC 180~260V/50HZ
Output voltage: DC 0.5~30KV Input current: AC 0~5.1A
Output current: DC 0~45mA Power factor: cosΦ 0.95
Working temperature: -25-65℃ Overall dimensions: length 300mm, width 220mm, thickness 105mm
Machine weight: 3.2 kg Insurance: 8A
Power cord length: 1 meter External indicator light data cord length: 1 meter

Product features

1. With a master switch key, the switch key has a blue LED background light, you can intuitively see the input 220V voltage status.

2. The large knob to adjust the voltage key has a voltage output value scale, and customers can accurately adjust the required voltage value according to their own needs.

3. In the true sense of power adjustment, users can choose the power output according to their needs. When the user presses the middle power output button, the power supply will output 70% of the current maximum output power. When the customer presses the high power output button, the power supply will follow the current 100% output of maximum output power.

4. Various indicators, (1) The power indicator is on when the power is turned on. The work indicator light is on during normal operation. (2) The short circuit/overload indicator is on. When the output terminal is connected to the electrode due to short circuit (fire), overload (cleaning), the power supply will not automatically shut down, this intelligent high-voltage power supply will automatically adjust according to the internal sensor feedback signal The required voltage thus works normally. If the user's requirement is not met, the user can adjust it by himself according to the voltage scaled by the voltage adjustment knob. (3) The low voltage indicator light is on when the output voltage is far lower than the load state that cannot be started (for example, the electrostatic field voltage is not large enough to produce the effect of removing smoke and dust, the ozone generator voltage is not large enough to ionize oxygen, etc.) the indicator light will light up to remind the user. If the voltage is not large enough, the voltage needs to be increased, which really brings users the experience of smart high-voltage power supply. (4) The over-temperature indicator is on. When the temperature in the high-voltage power supply exceeds 65°C, the temperature sensor sends a signal to the CPU, and the host stops working. When the temperature drops below 65°C, the host automatically starts working.

5. Output
